42ZYT Motor General Specification:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP40
nsulation Class: Class F / Working Temperature: -40℃~+140℃
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
42ZYT Motor Main Technical Specification:
Model | Unit | 42ZYT01A | 42ZYT02A | 42ZYT03A | 42ZYT04A | 42ZYT04B | 42ZYT04C | 42ZYT05A | 42ZYT05B |
Rated Voltage | VDC | 24v (option for 12v up to 60vdc) | |||||||
No Load Speed | Rpm | 4200 | 4200 | 3800 | 4200 | 5500 | 10000 | 4200 | 5400 |
Rated Torque | mN.m | 38 | 43 | 57 | 70 | 80 | 100 | 105 | 150 |
Rated Speed | Rpm | 3600 | 3600 | 3100 | 3600 | 4700 | 9000 | 3600 | 4500 |
Rated Current | A | 0.86 | 0.98 | 1.2 | 1.6 | 2.4 | 6 | 2.3 | 4 |
Output Power | W | 14.5 | 16.2 | 18.50 | 26.5 | 39.4 | 95 | 40 | 70.7 |
Weight | G | 390 | 460 | 500 | 540 | 540 | 540 | 700 | 700 |
Motor Length | Mm | 70 | 80 | 85 | 90 | 90 | 90 | 115 | 115 |
Drawing

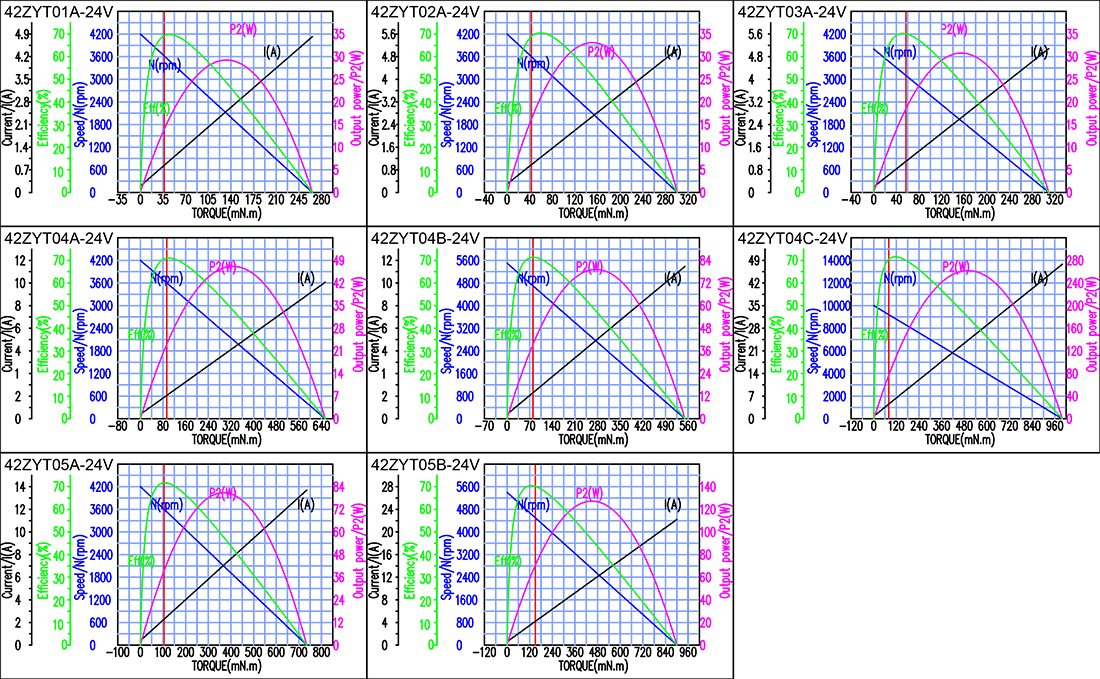

Speed-Torque Curve
