63ZYT Motor General Specification:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP50 （Option for IP54）
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
63ZYT Motor Main Technical Specification:
Model | Unit | 63ZYT01A | 63ZYT01B | 63ZYT01C | 63ZYT02A | 63ZYT03A | 63ZYT03B | 63ZYT04A |
Rated Voltage | VDC | 24v (option for 12v up to 220vdc) | ||||||
No Load Speed | Rpm | 3600 | 4700 | 10000 | 3600 | 3600 | 4700 | 3600 |
Rated Torque | N.m | 0.15 | 0.20 | 0.20 | 0.31 | 0.40 | 0.40 | 0.50 |
Rated Speed | Rpm | 3200 | 4000 | 9500 | 3100 | 3000 | 4000 | 3000 |
Rated Current | A | 2.8 | 5.5 | 12.0 | 5.8 | 7.0 | 10.5 | 9.0 |
Output Power | W | 50 | 84 | 200 | 100 | 125 | 168 | 157 |
Weight | Kg | 1 | 1 | 1 | 1.2 | 1.35 | 1.35 | 1.5 |
Motor Length | Mm | 95 | 95 | 95 | 110 | 125 | 125 | 140 |

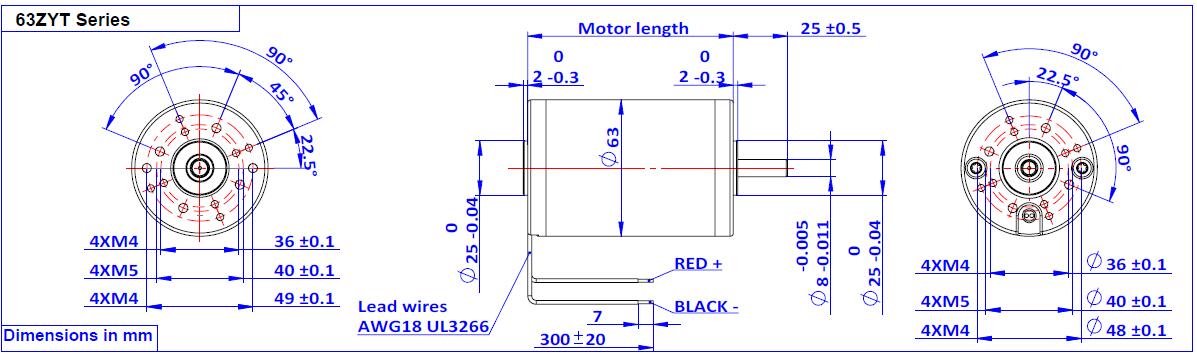

Drawing:

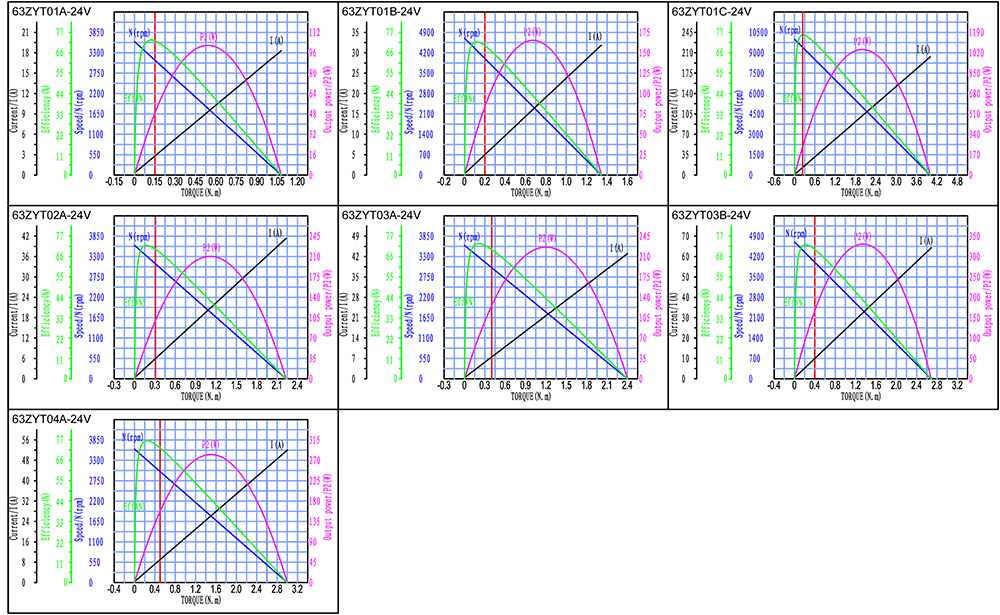

Speed-Torque Curve：
