90ZYT Motor General Specifications:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 4- Poles
Protection Class: IP50 （Option for IP54）
Insulation Class: Class F / Working Temperature: -40℃~+140℃
90ZYT Motor Main Technical Specifications:
Model | Unit | 90ZYT01A | 90ZYT02A | 90ZYT03A |
Rated Voltage | VDC | 24v (option for 12v 36v 48v up to 220vdc) | ||
No Load Speed | Rpm | 3600 | 3600 | 3600 |
Rated Torque | N.m | 1.5 | 2.2 | 3 |
Rated Speed | Rpm | 3000 | 3000 | 3000 |
Rated Current | A | 26 | 37 | 50 |
Output Power | W | 471 | 691 | 942 |
Weight | Kg | 3.5 | 4 | 4.5 |
Motor Length | Mm | 155 | 180 | 199 |
NMRV050.90ZYT01A Worm Gear Motor Specification:
Reduction ratio | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | |
Transmission Efficiency | 90% | 85% | 85% | 80% | 75% | 75% | 70% | 65% | 60% | 55% | 50% | 40% | |
No Load Speed | Rpm | 720 | 720 | 720 | 720 | 720 | 720 | 720 | 720 | 720 | 720 | 720 | 720 |
Rated Speed | Rpm | 600 | 400 | 300 | 200 | 150 | 120 | 100 | 75 | 60 | 50 | 37.5 | 30 |
Rated Torque | N.m | 6.7 | 9.5 | 12.7 | 18.0 | 22.5 | 28.1 | 31.5 | 39.0 | 45.0 | 49.5 | 60.0 | 60.0 |
NMRV050.90ZYT02A Worm Gear Motor Specification:
Reduction ratio | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | |
Transmission Efficiency | 90% | 85% | 85% | 80% | 75% | 75% | 70% | 65% | 60% | 55% | 50% | 40% | |
No Load Speed | Rpm | 720 | 720 | 720 | 720 | 720 | 720 | 720 | 720 | 720 | 720 | 720 | 720 |
Rated Speed | Rpm | 600 | 400 | 300 | 200 | 150 | 120 | 100 | 75 | 60 | 50 | 37.5 | 30 |
Rated Torque | N.m | 9.9 | 14.0 | 18.7 | 26.4 | 33.0 | 41.2 | 46.2 | 57.2 | 66.0 | 72.6 | 88.0 | 88.0 |
NMRV050.90ZYT03A Worm Gear Motor Specification:
Reduction ratio | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | |
Transmission Efficiency | 90% | 85% | 85% | 80% | 75% | 75% | 70% | 65% | 60% | 55% | 50% | 40% | |
No Load Speed | Rpm | 720 | 720 | 720 | 720 | 720 | 720 | 720 | 720 | 720 | 720 | 720 | 720 |
Rated Speed | Rpm | 600 | 400 | 300 | 200 | 150 | 120 | 100 | 75 | 60 | 50 | 37.5 | 30 |
Rated Torque | N.m | 13.5 | 19.1 | 25.5 | 36.0 | 45.0 | 56.2 | 63.0 | 78.0 | 90.0 | 99.0 | 120.0 | 120.0 |

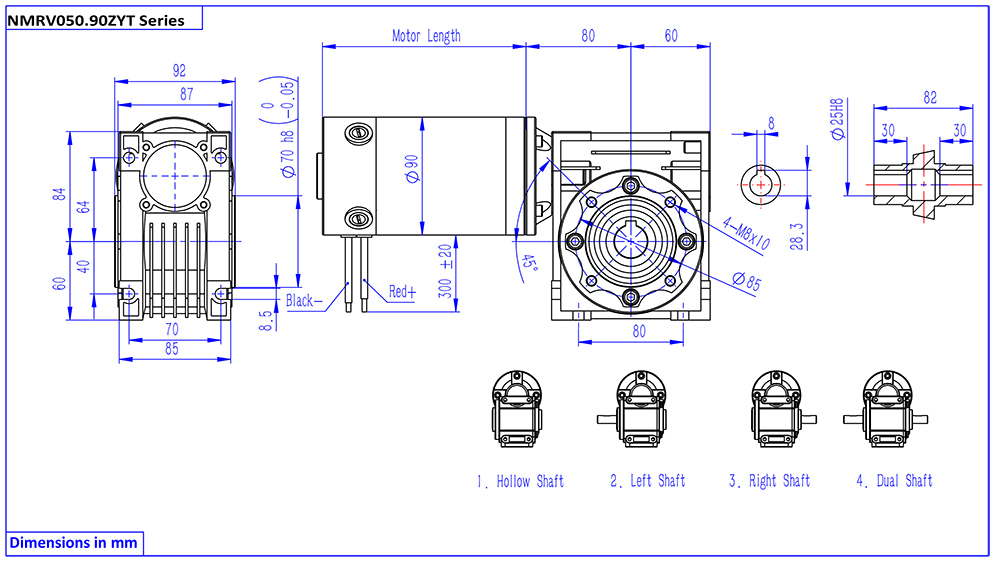

Gear Motor Drawing:
