The detailed information
Motor General Specifications:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP50 （Option for IP54）
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Option: Customized Voltage Performance Mounting and Shaft
38ZYN Motor Main Technical Specification:
Model | Unit | 38ZYN01A | 38ZYN02A | 38ZYN03A | 38ZYN04A |
Rated Voltage | VDC | 24v (option for 12v up to 60vdc) | |||
No Load Speed | Rpm | 3950 | 3950 | 3950 | 3950 |
Rated Torque | mN.m | 55 | 70 | 100 | 120 |
Rated Speed | Rpm | 3300 | 3250 | 3200 | 3200 |
Rated Current | A | 1.13 | 1.42 | 2.0 | 2.4 |
Output Power | W | 19 | 23.8 | 33.5 | 40 |
Weight | G | 260 | 300 | 350 | 390 |
Motor Length | Mm | 60 | 70 | 80 | 90 |
36JXL50K Planetary Gearbox Specifications:
Ring Material | Powder Metal |
Bearing at Output | all bearings |
Max. Radial Load (10mm from Flange) | ≤ 100N |
Max. Shaft Axial Load | ≤ 50N |
Radial Play of Shaft (Near to Flange) | ≤0.07mm |
Axial Play of Shaft | ≤0.3mm |
Backlash at No-load) | ≤2.5° |
Max Shaft Press Fit Force | ≤ 120N |
Reduction Ratio | Max Nominal Torque Permitted | Max Momentary Torque Permitted | Efficiency | L(mm) | Weight(g) |
1/14 1/19 1/22 1/27 1/35 | 2.0 N.m | 6 N.m | 81% | 38.4±0.5 | 240 |
1/49 1/59 1/68 1/82 1/95 1/115 | 4.0 N.m | 10 N.m | 73% | 45.7±0.5 | 280 |
1/181 1/218 1/253 1/305 1/354 1/426 1/495 1/596 | 5.0 N.m | 12 N.m | 66% | 53.0±0.5 | 330 |
36JXL50K.38ZYN01A Planetary Gear Motor Specifications:
Reduction ratio | Unit | 14 | 19 | 22 | 27 | 35 | 49 | 59 | 68 | 82 | 95 | 115 | 181 | 218 | 253 | 305 | 354 | 426 | 495 | 596 |
Efficiency | 81% | 81% | 81% | 81% | 81% | 73% | 73% | 73% | 73% | 73% | 73% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | |
No Load Speed | Rpm | 282.1 | 207.9 | 179.5 | 146.3 | 112.9 | 80.6 | 66.9 | 58.1 | 48.2 | 41.6 | 34.3 | 21.8 | 18.1 | 15.6 | 13.0 | 11.2 | 9.3 | 8.0 | 6.6 |
Rated Torque | Nm | 0.6 | 0.8 | 1.0 | 1.2 | 1.6 | 2.0 | 2.4 | 2.7 | 3.3 | 3.8 | 4.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
Rated Speed | Rpm | 235.7 | 173.7 | 150.0 | 122.2 | 94.3 | 67.3 | 55.9 | 48.5 | 40.2 | 34.7 | 28.7 | 18.2 | 15.1 | 13.0 | 10.8 | 9.3 | 7.7 | 6.7 | 5.5 |
36JXL50K.38ZYN02A Planetary Gear Motor Specifications:
Reduction ratio | Unit | 14 | 19 | 22 | 27 | 35 | 49 | 59 | 68 | 82 | 95 | 115 | 181 | 218 | 253 | 305 | 354 | 426 | 495 | 596 |
Efficiency | 81% | 81% | 81% | 81% | 81% | 73% | 73% | 73% | 73% | 73% | 73% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | |
No Load Speed | Rpm | 282.1 | 207.9 | 179.5 | 146.3 | 112.9 | 80.6 | 66.9 | 58.1 | 48.2 | 41.6 | 34.3 | 21.8 | 18.1 | 15.6 | 13.0 | 11.2 | 9.3 | 8.0 | 6.6 |
Rated Torque | Nm | 0.8 | 1.1 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.0 | 4.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
Rated Speed | Rpm | 232.1 | 171.1 | 147.7 | 120.4 | 92.9 | 66.3 | 55.1 | 47.8 | 39.6 | 34.2 | 28.3 | 18.0 | 14.9 | 12.8 | 10.7 | 9.2 | 7.6 | 6.6 | 5.5 |
36JXL50K.38ZYN03A Planetary Gear Motor Specifications:
Reduction ratio | Unit | 14 | 19 | 22 | 27 | 35 | 49 | 59 | 68 | 82 | 95 | 115 | 181 | 218 | 253 | 305 | 354 | 426 | 495 | 596 |
Efficiency | 81% | 81% | 81% | 81% | 81% | 73% | 73% | 73% | 73% | 73% | 73% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | |
No Load Speed | Rpm | 282.1 | 207.9 | 179.5 | 146.3 | 112.9 | 80.6 | 66.9 | 58.1 | 48.2 | 41.6 | 34.3 | 21.8 | 18.1 | 15.6 | 13.0 | 11.2 | 9.3 | 8.0 | 6.6 |
Rated Torque | Nm | 1.1 | 1.5 | 1.8 | 2.0 | 2.0 | 3.6 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
Rated Speed | Rpm | 228.6 | 168.4 | 145.5 | 118.5 | 91.4 | 65.3 | 54.2 | 47.1 | 39.0 | 33.7 | 27.8 | 17.7 | 14.7 | 12.6 | 10.5 | 9.0 | 7.5 | 6.5 | 5.4 |
36JXL50K.38ZYN04A Planetary Gear Motor Specifications:
Reduction ratio | Unit | 14 | 19 | 22 | 27 | 35 | 49 | 59 | 68 | 82 | 95 | 115 | 181 | 218 | 253 | 305 | 354 | 426 | 495 | 596 |
Efficiency | 81% | 81% | 81% | 81% | 81% | 73% | 73% | 73% | 73% | 73% | 73% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | |
No Load Speed | Rpm | 282.1 | 207.9 | 179.5 | 146.3 | 112.9 | 80.6 | 66.9 | 58.1 | 48.2 | 41.6 | 34.3 | 21.8 | 18.1 | 15.6 | 13.0 | 11.2 | 9.3 | 8.0 | 6.6 |
Rated Torque | Nm | 1.4 | 1.8 | 2.0 | 2.0 | 2.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
Rated Speed | Rpm | 228.6 | 168.4 | 145.5 | 118.5 | 91.4 | 65.3 | 54.2 | 47.1 | 39.0 | 33.7 | 27.8 | 17.7 | 14.7 | 12.6 | 10.5 | 9.0 | 7.5 | 6.5 | 5.4 |

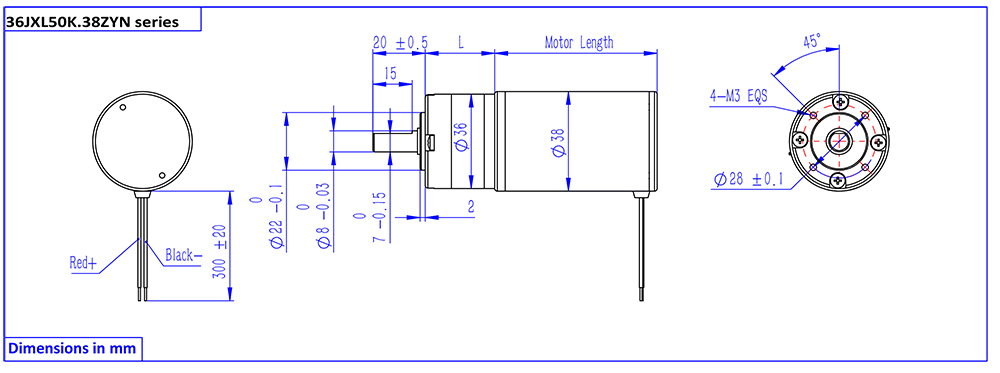

Gear Motor Drawing:
