The detailed information
General specification
Item | Specification |
Winding type | Delta |
Hall effect angle | 120¡ã £¨electrical angle£© |
Shaft run out | 0.025mm |
Radial play | 0.025mm@450g |
End play | 0.025mm@450g |
Max. radial force | 85N@10mm from the flange |
Max. axial force | 50N |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100M¦¸Min.500VDC |
Electric connection
Lead No. | Lead Color | Lead Gauge | Function | DESCRIPTION |
1 | Red | UL1007/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS |
2 | Black | GND | GROUND FOR HALL SENSORS | |
3 | Blue | HALL A | ||
4 | Green | HALL B | ||
5 | White | HALL C | ||
6 | Red | UL1007/18AWG | PHASE U | |
7 | Yellow | PHASE V | ||
8 | Black | PHASE W |
Technique Specification
Model | 60BLS-68 | 60BLS-88 | 60BLS-108 | |
Number of phase | 3 | |||
Number of pole | 8 | |||
Voltage | V | 24v (Option for 12v 36v up to 60vdc) | ||
No load speed | rpm | 4000 | 4000 | 4000 |
Rated torque | Nm | 0.32 | 0.6 | 0.9 |
Rated Speed | rpm | 3000 | 3000 | 3000 |
Rated Current | A | 5.5 | 10 | 15 |
Rated Power | W | 100 | 188 | 284 |
Weight | Kg | 0.9 | 1.2 | 1.6 |
Length | mm | 68 | 88 | 108 |

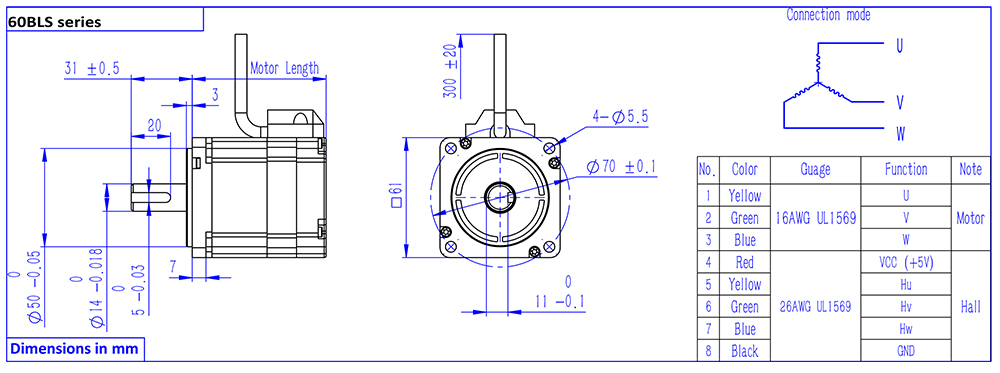

Dimensions
