The detailed information
General specification
Item | Specification |
Winding type | Delta |
Hall effect angle | 120¡ã £¨electrical angle£© |
Shaft run out | 0.025mm |
Radial play | 0.06mm@450g |
End play | 0.08mm@450g |
Max. radial force | 200N@10mm from the flange |
Max. axial force | 60N |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100M¦¸Min.500VDC |
Electric connection
Lead No. | Lead Color | Lead Gauge | Function | DESCRIPTION |
1 | Red | UL1007/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS |
2 | Black | GND | GROUND FOR HALL SENSORS | |
3 | Blue | HALL A | ||
4 | Green | HALL B | ||
5 | White | HALL C | ||
6 | Red | UL1007/14AWG | PHASE U | |
7 | Yellow | PHASE V | ||
8 | Black | PHASE W |
Technique Specification
Model | 80BLS01A | 80BLS02A | 80BLS03A | 80BLS04A | |
Number of phase | 3 | ||||
Number of pole | 8 | ||||
Voltage | V | 24v(Option for 12v up to 230vdc) | |||
No load speed | rpm | 4200 | 4200 | 4200 | 4200 |
Rated torque | Nm | 0.3 | 0.65 | 1 | 1.3 |
Rated Speed | rpm | 3000 | 3000 | 3000 | 3000 |
Rated Current | A | 6.5 | 12.5 | 18 | 20.5 |
Rated Power | W | 94 | 200 | 315 | 410 |
Weight | Kg | 1.6 | 2.2 | 3 | 3.8 |
Length | mm | 85 | 105 | 115 | 145 |

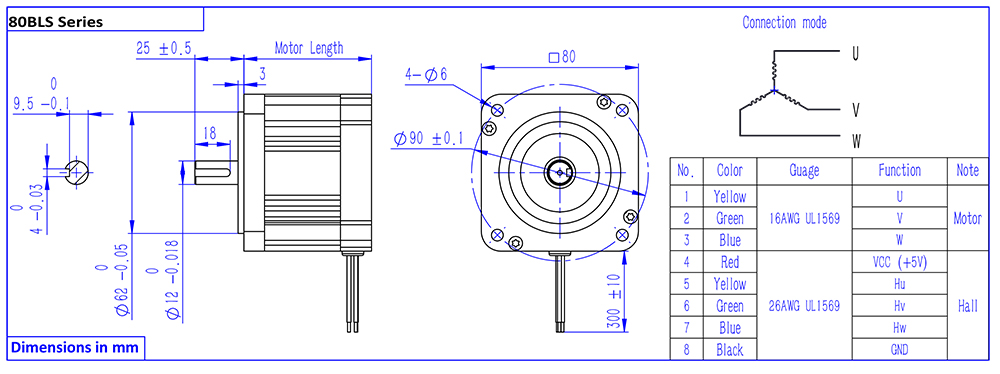

Dimensions
