General specification
Item | Specification |
Winding Type | Star / Delta |
Hall Effect Angle | 120¡ã £¨electrical angle£© |
Shaft Run Out | 0.025mm |
Radial Play | 0.06mm@450g |
End Play | 0.08mm@450g |
Max. Radial Force | 220N@10mm from the flange |
Max. Axial Force | 60N |
Insulation Class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation Resistance | 100M¦¸ Min.500VDC |
Customization:
Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations
Options for Thermal Protection, IP Grade, High Temperature Insulation
Technique Specification
Model | 86BLS-70 | 86BLS-80 | 86BLS-90 | 86BLS-105 | 86BLS-130 | 86BLS-135 | |
Number of phase | 3 | ||||||
Number of pole | 8 | ||||||
Voltage | Vdc | 48v (Option for 12v 24v up to 310vdc) | |||||
No load speed | rpm | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
Rated torque | Nm | 0.7 | 1.0 | 1.4 | 1.8 | 2.5 | 3.0 |
Rated Speed | rpm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
Rated Current | A | 6 | 8.6 | 11.5 | 15 | 21 | 25 |
Rated Power | W | 220 | 314 | 439 | 565 | 785 | 942 |
Weight | kg | 1.7 | 2.1 | 2.5 | 3.1 | 4.1 | 4.3 |
Length | mm | 70 | 80 | 90 | 105 | 130 | 135 |

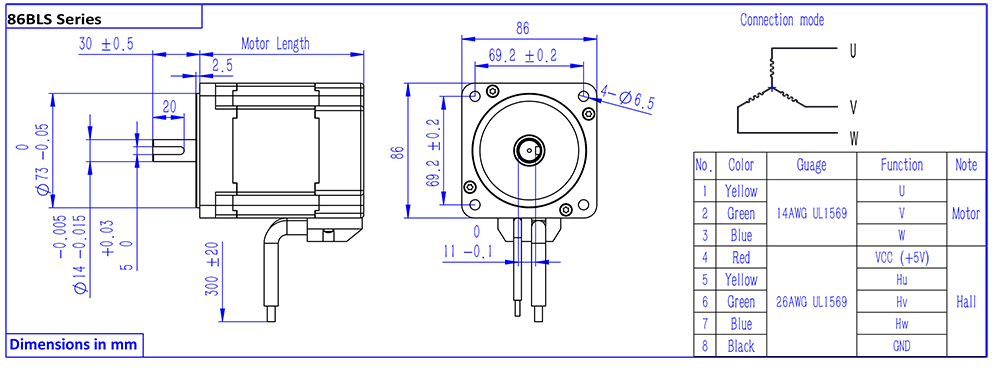

Drawing£º
