The detailed information
General specification
Item | Specification |
Winding type | Delta |
Hall effect angle | 120¡ã £¨electrical angle£© |
Shaft run out | 0.025mm |
Radial play | 0.06mm@450g |
End play | 0.08mm@450g |
Max. radial force | 300N@10mm from the flange |
Max. axial force | 60N |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100M¦¸Min.500VDC |
Electric connection
Lead No. | Lead Color | Lead Gauge | Function | DESCRIPTION |
1 | Red | UL1007/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS |
2 | Black | GND | GROUND FOR HALL SENSORS | |
3 | Blue | HALL A | ||
4 | Green | HALL B | ||
5 | White | HALL C | ||
6 | Red | UL1007/12AWG | PHASE U | |
7 | Yellow | PHASE V | ||
8 | Black | PHASE W |
Technique Specification
Model | 110BLS01A | 110BLS02A | 110BLS03A | 110BLS04A | |
Number of phase | 3 | ||||
Number of pole | 8 | ||||
Voltage | V | 48v(Option for 12v up to 300vdc) | |||
No load speed | rpm | 2830 | 2830 | 2770 | 2830 |
Rated torque | Nm | 1.65 | 3.3 | 5 | 6.6 |
Rated Speed | rpm | 2530 | 2530 | 2370 | 2530 |
Rated Current | A | 13 | 23 | 32 | 46 |
Rated Power | W | 440 | 875 | 1240 | 1750 |
Weight | Kg | 4.2 | 5.5 | 6.8 | 8.1 |
Length | mm | 93 | 123 | 153 | 183 |

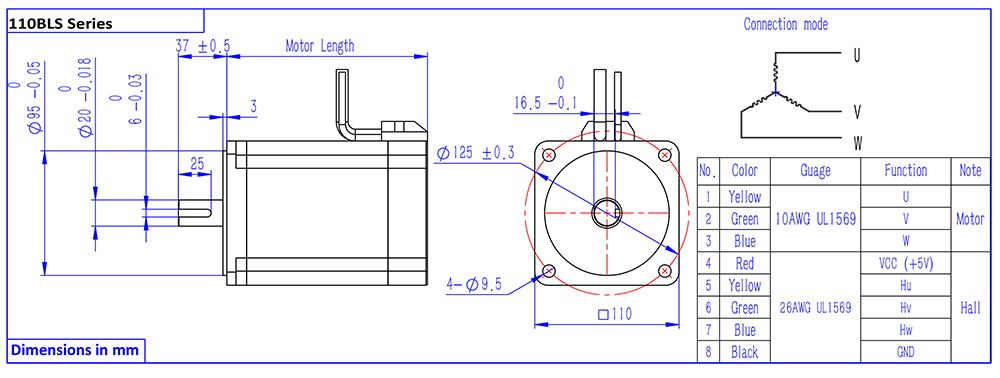

Dimensions
