86RBL Technique Specification
Model | 86RBL01A / 86BLS01A | 86RBL02A / 86BLS02A | 86RBL03A / 86BLS03A | |
Number of phase | 3 | |||
Number of pole | 8 | |||
Voltage | V | 48v (Option for 12v 24v up to 230vdc) | ||
No load speed | rpm | 3600 | 3600 | 3600 |
Rated torque | Nm | 1.0 | 1.8 | 2.5 |
Rated Speed | rpm | 3000 | 3000 | 3000 |
Rated Current | A | 8.6 | 14.8 | 20 |
Rated Power | W | 314 | 565 | 785 |
Weight | Kg | 2.2 | 3.2 | 4.2 |
Length | mm | 80 | 105 | 130 |
Planetary Gearbox Specifications
Gearbox Model: 82PN (Helical Gear)
Reduction ratio | Rated tolerance torque | Max momentary tolerance torque | Efficiency | L(mm) |
1/3.65 1/5.36 1/6.55 1/8.63 | 20N.m | 40 N.m | 90% | 63.7±0.5 |
1/13.5 1/18.9 1/24.6 1/28 1/33.9 1/44.7 1/67 | 60 N.m | 120 N.m | 81% | 80.5±0.5 |
1/81.1 1/91.3 1/102.9 1/119 1/127.7 1/145.4 1/165.6 1/191.6 1/231.6 1/301.7 1/393 | 120N.m | 240 N.m | 73% | 103.2±0.5 |

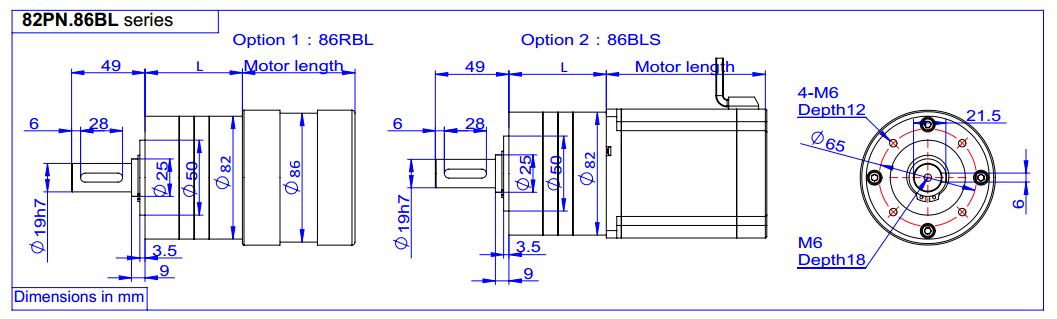

Drawing
