The detailed information
Motor Specifications
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP67
Insulation class: F
Certified by CE and ROHS
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation

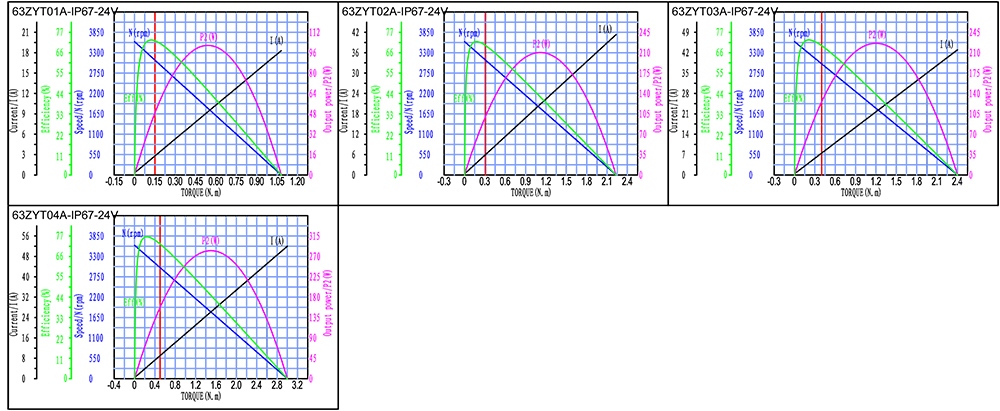

Motor Main Characteristics
Model | 63ZYT01A-IP67 | 63ZYT01B-IP67 | 63ZYT01C-IP67 | 63ZYT02A-IP67 | 63ZYT02B-IP67 | 63ZYT02C-IP67 | 63ZYT03A-IP67 | 63ZYT03B-IP67 | 63ZYT04A-IP67 |
Rated Voltage | 24v (option for 12v 36v 48v) | ||||||||
Rated Speed (rpm) | 3300 | 4000 | 9500 | 3000 | 4000 | 7500 | 3000 | 4000 | 3000 |
Rated Torque (Nm) | 0.15 | 0.2 | 0.2 | 0.31 | 0.35 | 0.4 | 0.4 | 0.4 | 0.5 |
No load speed (rpm) | 3600 | 4700 | 10000 | 3500 | 4700 | 8400 | 3500 | 4700 | 3600 |
Weight (Kg) | 1 | 1 | 1 | 1.2 | 1.2 | 1.2 | 1.35 | 1.35 | 1.50 |
Motor Length (mm) | 103 | 103 | 103 | 118 | 118 | 118 | 133 | 133 | 148 |
Output Power (W) | 52 | 84 | 200 | 97 | 147 | 314 | 126 | 168 | 157 |

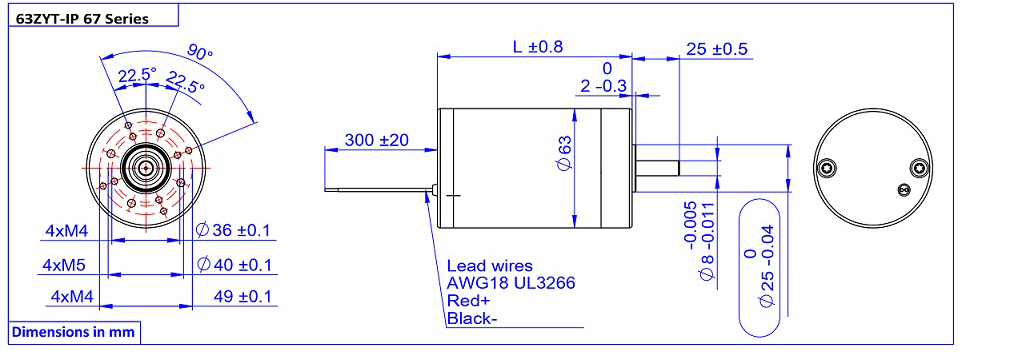

Drawing
