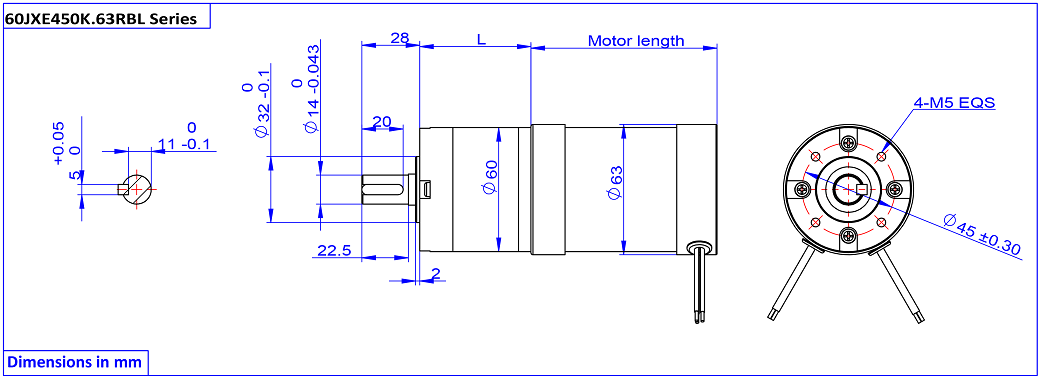

60JXE450K.63RBL

The detailed information

Motor Main Specifications:

Bearing: High Quality Ball Bearing

Protection Class: IP54

Insulation Class: Class F / Working Temperature: -40~+140

Certifications: CE and ROHS



 Electric connection

Lead No.

Lead Color

Lead Gauge

Function

DESCRIPTION

1

Red

UL1007/26AWG

VCC

SUPPLY VOLTAGE FOR HALL   SENSORS

2

Black

GND

GROUND FOR HALL SENSORS

3

Yellow

HALL A


4

Green

HALL B


5

Blue

HALL C


6

Yellow

UL1007/14AWG

PHASE U


7

Green

 PHASE V


8

Blue

 PHASE W






Technique Specification

Model

63RBL-50

63RBL-60

63RBL-70

63RBL-80

63RBL-90

63RBL-100

63RBL-110

Number of   phase

3

Number of   pole

4 Option 8

Voltage

V

24v (Option   for 12v up to 230vdc)

No   load speed

rpm

4000

4000

4000

4000

4000

4000

4000

No   load current

A

0.5

0.6

0.7

0.8

0.9

1.0

1.1

Rated   torque

Nm

0.2

0.31

0.4

0.5

0.6

0.7

0.8

Rated   Speed

rpm

3050

3050

3050

3000

3000

3000

3000

Rated   Current

A

 3.5

5.5

 7.0

8.5

10.5

12

14

Rated   Power

W

64

100

 128

157

188

219

251

Weight

Kg

 0.80

1.0

1.2

1.4

 1.6

1.8

2.0

Length

mm

 50

 60

 70

 80

 90

100

110




Planetary Gearbox Specifications:

Gearbox Model: 60JXE450K

Ring material

Metal

Bearing at   output

Ball bearings

Max. Radial load (10mm from flange)

400N

Max. shaft axial load

120N

Radial play of shaft (near to flange)

0.08mm

Axial play of shaft

0.4mm

Backlash at no-load)

1.5°

Shaft press fit force, max

300N




Reduction ratio

Rated tolerance torque

Max momentary tolerance torque

Efficiency

L(mm)

Weight(g)

1/3.6 1/4.25 1/5.33

4 N.m

12 N.m

90%

40.3±0.5

520

1/13 1/15 1/18 1/23   1/28

18 N.m

36 N.m

81%

53.8±0.5

710

1/43 1/52 1/61 1/72   1/96 1/121

36 N.m

72 N.m

73%

67.2±0.5

900

1/154 1/187 1/220   1/260 1/307

1/409 1/514 1/645   1/809

45 N.m

90N.m

66%

80.6±0.5

1100
