The detailed information
General specification
Item | Specification |
Winding Type | Star |
Hall Effect Angle | 120¡ã £¨electrical angle£© |
Shaft Run Out | 0.025mm |
Radial Play | 0.025mm@450g |
End Play | 0.025mm@450g |
Max. Radial Force | 100N@10mm from the flange |
Max. Axial Force | 45N |
Insulation Class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation Resistance | 100M¦¸ Min.500VDC |
Customization:
Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations
Options for Thermal Protection, IP Grade, High Temperature Insulation
Technique Specification
Model | 52RBL-50 | 52RBL-60 | 52RBL-70 | 52RBL-80 | |
Number of phase | 3 | ||||
Number of pole | 4 (Option for 8) | ||||
Voltage | Vdc | 24v(Option for 12v up to 115vdc) | |||
No load speed | rpm | 4200 | 4000 | 4000 | 4000 |
Rated torque | Nm | 0.11 | 0.20 | 0.30 | 0.40 |
Rated Speed | rpm | 3700 | 3500 | 3300 | 3300 |
Rated Current | A | 2.5 | 4.5 | 6 | 8 |
Rated Power | W | 43 | 74 | 104 | 138 |
Weight | kg | 0.6 | 0.7 | 0.8 | 0.9 |
Length | mm | 50 | 60 | 70 | 80 |

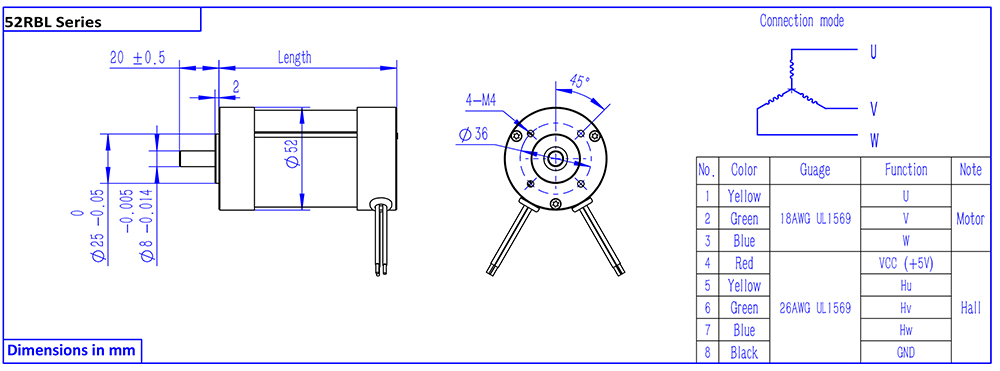

Drawing£º
