The detailed information
Motor Specifications
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP50, option for IP54
Insulation class: F
Certified by CE and ROHS
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
Motor Main Characteristics
Model | Unit | 80ZYT-S01A | 80ZYT-S02A | 80ZYT-S03A | 80ZYT-S04A |
Rated Voltage | VDC | 24v (option for 12v 36v 48v up to 220vdc) | |||
No Load Speed | Rpm | 3600 | 3600 | 3500 | 3500 |
Rated Torque | N.m | 0.6 | 0.8 | 1.0 | 1.2 |
Rated Speed | Rpm | 3150 | 3150 | 3050 | 3050 |
Rated Current | A | 10.0 | 13.5 | 15.5 | 20.0 |
Output Power | W | 200 | 265 | 320 | 383 |
Weight | Kg | 2.5 | 3 | 3.5 | 4.0 |
Motor Length | Mm | 120 | 140 | 160 | 175 |
Drawing

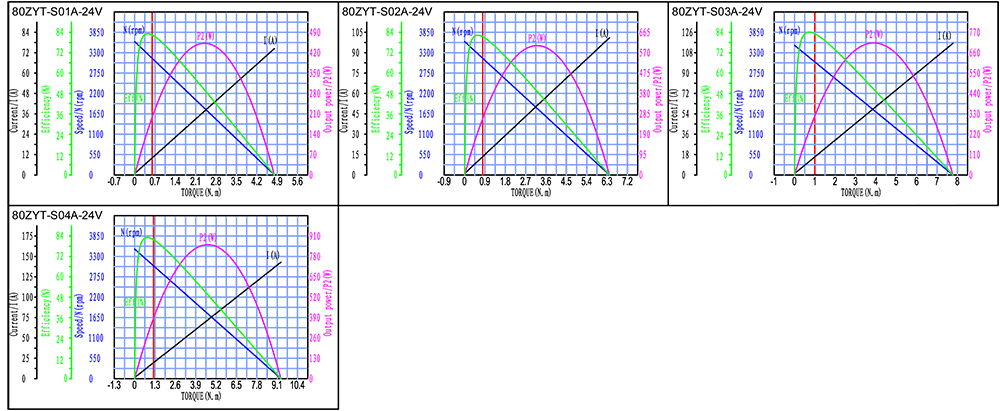

Speed-Torque Curve:
