The detailed information
Brushless Motor Specification
Item | Specification |
Winding type | Y connection |
Hall effect angle | 120° （electrical angle） |
Shaft run out | 0.025mm |
Radial play | 0.025mm@450g |
End play | 0.025mm@450g |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100MΩMin.500VDC |
Model | 130BLS01A | 130BLS02A | |
Number of phase | 3 | ||
Number of pole | 8 | ||
Voltage | V | 72 （Customizable） | |
No load speed | rpm | 3500 | 3500 |
Rated torque | Nm | 9.5 | 14.5 |
Rated Speed | rpm | 3000 | 3000 |
Rated Current | A | 52 | 78 |
Rated Power | W | 3000 | 4500 |
Length | mm | 190 | 240 |

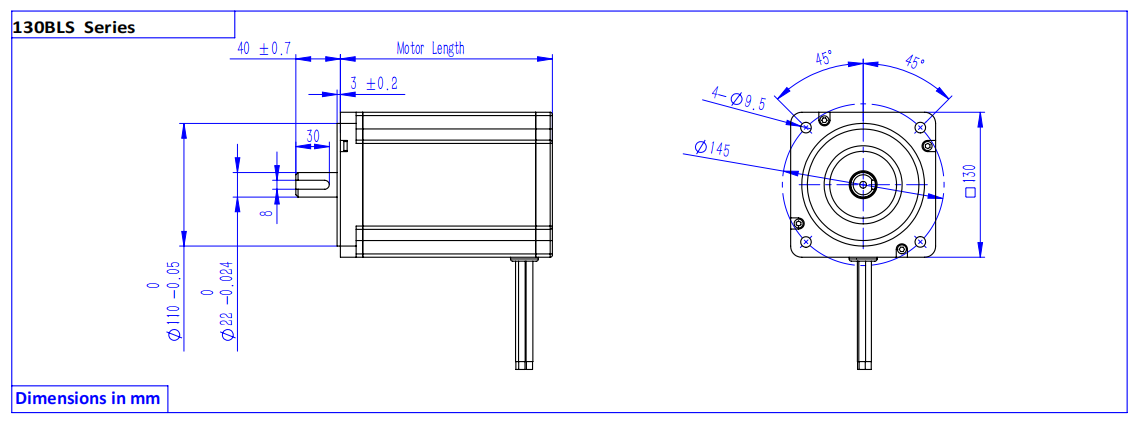

Dimensions
