Motor General Specifications:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP50 （Option for IP54）
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Certifications: CE and ROHS
90ZYT Motor Main Technical Specification:
Model | Unit | 90ZYT01A | 90ZYT02A | 90ZYT03A |
Rated Voltage | VDC | 24v (option for 12v 36v 48v up to 220vdc) | ||
No Load Speed | Rpm | 3600 | 3600 | 3600 |
Rated Torque | N.m | 1.5 | 2.2 | 3 |
Rated Speed | N.m | 3000 | 3000 | 3000 |
Rated Current | A | 26 | 37 | 50 |
Output Power | W | 471 | 691 | 942 |
Weight | Kg | 3.5 | 4 | 4.5 |
Motor Length | Mm | 155 | 180 | 199 |
80PMB800K Planetary Gearbox Specifications:
Ring Material | Metal |
Bearing at Output | Ball bearings |
Max. Radial Load (10mm from Flange) | 600N |
Max. Shaft Axial Load | 200N |
Radial Play of Shaft (Near to Flange) | ≤0.1 mm |
Axial Play of Shaft | ≤0.6 mm |
Backlash at No-load) | ≤2.5° |
Max Shaft Press Fit Force | 1000N |
Reduction Ratio | Max Nominal Torque Permitted | Max Momentary Torque Permitted | Efficiency | L(mm) | Weight(g) |
1/3.55 1/5.31 1/6.60 | 8 N.m | 12 N.m | 90% | 55.7±0.5 | 1100 |
1/13 1/19 1/23 | 30 N.m | 45 N.m | 81% | 72.2±0.5 | 1500 |
1/26 1/30 1/37 | 60 N.m | 90 N.m | 81% | 72.2±0.5 | 1500 |
1/50 1/74 1/92 1/111 1/138 | 80 N.m | 120N.m | 73% | 88.5±0.5 | 1800 |
80PMB800K.90ZYT01A Planetary Gear Motor Specifications:
Reduction ratio | Unit | 3.55 | 5.31 | 6.60 | 13 | 19 | 23 | 26 | 30 | 37 | 50 | 74 | 92 | 111 | 135 |
Efficiency | 90% | 90% | 90% | 81% | 81% | 81% | 81% | 81% | 81% | 73% | 73% | 73% | 73% | 73% | |
No Load Speed | Rpm | 1014.08 | 677.97 | 545.45 | 276.92 | 189.47 | 156.52 | 138.46 | 120.00 | 97.30 | 72.00 | 48.65 | 39.13 | 32.43 | 26.67 |
Rated Torque | Nm | 4.79 | 7.17 | 8.00 | 15.80 | 23.09 | 27.95 | 31.59 | 36.45 | 44.96 | 54.75 | 80.00 | 80.00 | 80.00 | 80.00 |
Rated Speed | Rpm | 845.07 | 564.97 | 454.55 | 230.77 | 157.89 | 130.43 | 115.38 | 100.00 | 81.08 | 60.00 | 40.54 | 32.61 | 27.03 | 22.22 |
80PMB800K.90ZYT02A Planetary Gear Motor Specifications:
Reduction ratio | Unit | 3.55 | 5.31 | 6.60 | 13 | 19 | 23 | 26 | 30 | 37 | 50 | 74 | 92 | 111 | 135 |
Efficiency | 90% | 90% | 90% | 81% | 81% | 81% | 81% | 81% | 81% | 73% | 73% | 73% | 73% | 73% | |
No Load Speed | Rpm | 1014.08 | 677.97 | 545.45 | 276.92 | 189.47 | 156.52 | 138.46 | 120.00 | 97.30 | 72.00 | 48.65 | 39.13 | 32.43 | 26.67 |
Rated Torque | Nm | 7.03 | 8.00 | 8.00 | 23.17 | 30.00 | 30.00 | 46.33 | 53.46 | 60.00 | 80.00 | 80.00 | 80.00 | 80.00 | 80.00 |
Rated Speed | Rpm | 845.07 | 564.97 | 454.55 | 230.77 | 157.89 | 130.43 | 115.38 | 100.00 | 81.08 | 60.00 | 40.54 | 32.61 | 27.03 | 22.22 |
80PMB800K.90ZYT03A Planetary Gear Motor Specifications:
Reduction ratio | Unit | 3.55 | 5.31 | 6.60 | 13 | 19 | 23 | 26 | 30 | 37 | 50 | 74 | 92 | 111 | 135 |
Efficiency | 90% | 90% | 90% | 81% | 81% | 81% | 81% | 81% | 81% | 73% | 73% | 73% | 73% | 73% | |
No Load Speed | Rpm | 1014.08 | 677.97 | 545.45 | 276.92 | 189.47 | 156.52 | 138.46 | 120.00 | 97.30 | 72.00 | 48.65 | 39.13 | 32.43 | 26.67 |
Rated Torque | Nm | 8.00 | 8.00 | 8.00 | 30.0 | 30.0 | 30.0 | 60.00 | 60.00 | 60.00 | 80.00 | 80.00 | 80.00 | 80.00 | 80.00 |
Rated Speed | Rpm | 845.07 | 564.97 | 454.55 | 230.77 | 157.89 | 130.43 | 115.38 | 100.00 | 81.08 | 60.00 | 40.54 | 32.61 | 27.03 | 22.22 |

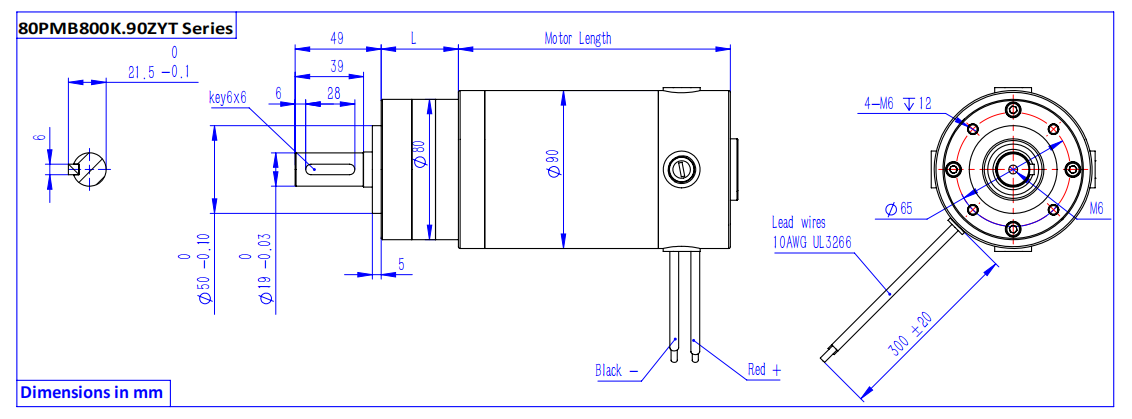

Gear Motor Drawing:
