The detailed information
Motor General Specifications:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP40
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Certifications: CE and ROHS
52ZYT Motor Main Technical Specification:
Model | Unit | 52ZYT01A | 52ZYT02A | 52ZYT03A | 52ZYT04A |
Rated Voltage | VDC | 24v (option for 12v up to 60vdc) | |||
No Load Speed | Rpm | 4200 | 4200 | 4200 | 4200 |
Rated Torque | N.m | 0.11 | 0.20 | 0.27 | 0.35 |
Rated Speed | Rpm | 3700 | 3500 | 3600 | 3600 |
Rated Current | A | 2.5 | 4.2 | 5.8 | 7.4 |
Output Power | W | 42.5 | 73 | 102 | 132 |
Weight | Kg | 0.85 | 1.0 | 1.15 | 1.30 |
Motor Length | Mm | 95 | 110 | 125 | 140 |
42JXL150K Planetary Gearbox Specifications:
Ring Material | Powder Metal |
Bearing at Output | all bearings |
Max. Radial Load (12mm from Flange) | ≤ 200N |
Max. Shaft Axial Load | ≤ 100N |
Radial Play of Shaft (Near to Flange) | ≤0.06mm |
Axial Play of Shaft | ≤0.3mm |
Backlash at No-load) | ≤2.5° |
Max Shaft Press Fit Force | ≤ 150N |
 |
*Helical Gear Low Noise
Reduction Ratio | Max Nominal Torque Permitted | Max Momentary Torque Permitted | Efficiency | L(mm) | Weight(g) |
1/3.71 1/5.18 | 1.5N.m | 4.0 N.m | 90% | 31.5±0.5 | 244 |
1/14 1/19 1/27 | 4.0 N.m | 12 N.m | 81% | 42.1±0.5 | 314 |
1/49 1/59 1/68 1/82 1/95 1/115 | 10 N.m | 25 N.m | 73% | 52.5±0.5 | 433 |
1/181 1/218 1/253 1/305 1/354 1/426 1/495 1/596 | 15 N.m | 38 N.m | 66% | 62.9±0.5 | 519 |
42JXL150K.52ZYT01A Planetary Gear Motor Specifications:
Reduction ratio | Unit | 3.71 | 5.18 | 14 | 19 | 27 | 49 | 59 | 68 | 82 | 95 | 115 | 181 | 218 | 253 | 305 | 354 | 426 | 495 | 596 |
Efficiency | 90% | 90% | 81% | 81% | 81% | 73% | 73% | 73% | 73% | 73% | 73% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | |
No Load Speed | Rpm | 1132.1 | 810.8 | 300.0 | 221.1 | 155.6 | 85.7 | 71.2 | 61.8 | 51.2 | 44.2 | 36.5 | 23.2 | 19.3 | 16.6 | 13.8 | 11.9 | 9.9 | 8.5 | 7.0 |
Rated Torque | Nm | 0.4 | 0.5 | 1.2 | 1.7 | 2.4 | 3.9 | 4.7 | 5.5 | 6.6 | 7.6 | 9.2 | 13.1 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 |
Rated Speed | Rpm | 997.3 | 714.3 | 264.3 | 194.7 | 137.0 | 75.5 | 62.7 | 54.4 | 45.1 | 38.9 | 32.2 | 20.4 | 17.0 | 14.6 | 12.1 | 10.5 | 8.7 | 7.5 | 6.2 |
42JXL150K.52ZYT02A Planetary Gear Motor Specifications:
Reduction ratio | Unit | 3.71 | 5.18 | 14 | 19 | 27 | 49 | 59 | 68 | 82 | 95 | 115 | 181 | 218 | 253 | 305 | 354 | 426 | 495 | 596 |
Efficiency | 90% | 90% | 81% | 81% | 81% | 73% | 73% | 73% | 73% | 73% | 73% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | |
No Load Speed | Rpm | 1132.1 | 810.8 | 300.0 | 221.1 | 155.6 | 85.7 | 71.2 | 61.8 | 51.2 | 44.2 | 36.5 | 23.2 | 19.3 | 16.6 | 13.8 | 11.9 | 9.9 | 8.5 | 7.0 |
Rated Torque | Nm | 0.7 | 0.9 | 2.3 | 3.1 | 4.0 | 7.2 | 8.6 | 9.9 | 10.0 | 10.0 | 10.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 |
Rated Speed | Rpm | 943.4 | 675.7 | 250.0 | 184.2 | 129.6 | 71.4 | 59.3 | 51.5 | 42.7 | 36.8 | 30.4 | 19.3 | 16.1 | 13.8 | 11.5 | 9.9 | 8.2 | 7.1 | 5.9 |
42JXL150K.52ZYT03A Planetary Gear Motor Specifications:
Reduction ratio | Unit | 3.71 | 5.18 | 14 | 19 | 27 | 49 | 59 | 68 | 82 | 95 | 115 | 181 | 218 | 253 | 305 | 354 | 426 | 495 | 596 |
Efficiency | 90% | 90% | 81% | 81% | 81% | 73% | 73% | 73% | 73% | 73% | 73% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | |
No Load Speed | Rpm | 1132.1 | 810.8 | 300.0 | 221.1 | 155.6 | 85.7 | 71.2 | 61.8 | 51.2 | 44.2 | 36.5 | 23.2 | 19.3 | 16.6 | 13.8 | 11.9 | 9.9 | 8.5 | 7.0 |
Rated Torque | Nm | 0.9 | 1.3 | 3.1 | 4.0 | 4.0 | 9.7 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 |
Rated Speed | Rpm | 970.4 | 695.0 | 257.1 | 189.5 | 133.3 | 73.5 | 61.0 | 52.9 | 43.9 | 37.9 | 31.3 | 19.9 | 16.5 | 14.2 | 11.8 | 10.2 | 8.5 | 7.3 | 6.0 |
42JXL150K.52ZYT04A Planetary Gear Motor Specifications:
Reduction ratio | Unit | 3.71 | 5.18 | 14 | 19 | 27 | 49 | 59 | 68 | 82 | 95 | 115 | 181 | 218 | 253 | 305 | 354 | 426 | 495 | 596 |
Efficiency | 90% | 90% | 81% | 81% | 81% | 73% | 73% | 73% | 73% | 73% | 73% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | 66% | |
No Load Speed | Rpm | 1132.1 | 810.8 | 300.0 | 221.1 | 155.6 | 85.7 | 71.2 | 61.8 | 51.2 | 44.2 | 36.5 | 23.2 | 19.3 | 16.6 | 13.8 | 11.9 | 9.9 | 8.5 | 7.0 |
Rated Torque | Nm | 1.3 | 1.5 | 4.0 | 4.0 | 4.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 | 15.0 |
Rated Speed | Rpm | 970.4 | 695.0 | 257.1 | 189.5 | 133.3 | 73.5 | 61.0 | 52.9 | 43.9 | 37.9 | 31.3 | 19.9 | 16.5 | 14.2 | 11.8 | 10.2 | 8.5 | 7.3 | 6.0 |

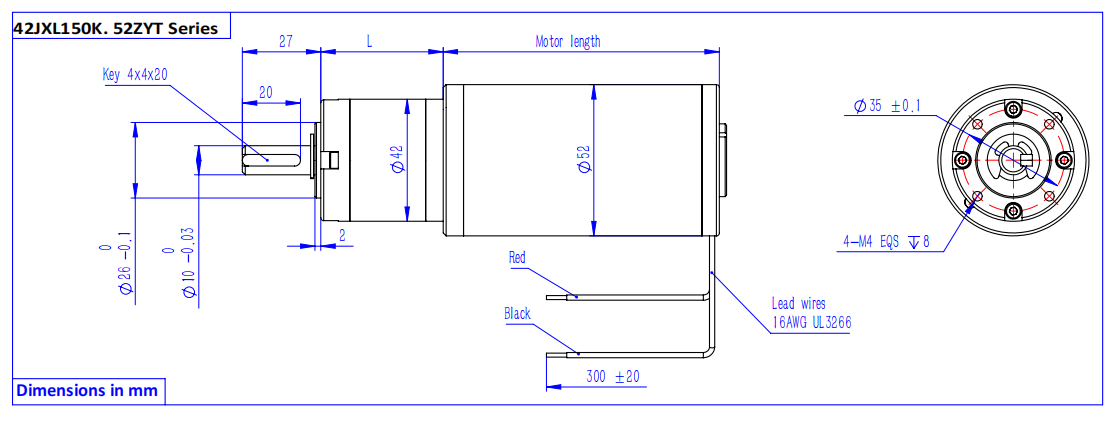

Gear Motor Drawing:
