36ZYT Motor General Specifications:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP50 （Option for IP54）
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Option: Customized Voltage Performance Mounting and Shaft
36ZYT Motor Main Technical Specification:
Model | Unit | 36ZYT01A | 36ZYT02A | 36ZYT03A |
Rated Voltage | VDC | 24v (option for 12v up to 48vdc) | ||
No Load Speed | Rpm | 3800 | 3800 | 3800 |
Rated Speed | Rpm | 3000 | 3000 | 3000 |
Rated Torque | mN.m | 20 | 30 | 40 |
Rated Current | A | 0.4 | 0.6 | 0.8 |
Output Power | W | 6.3 | 9.4 | 12.6 |
Weight | g | 260 | 300 | 340 |
Motor Length | Mm | 60 | 70 | 80 |

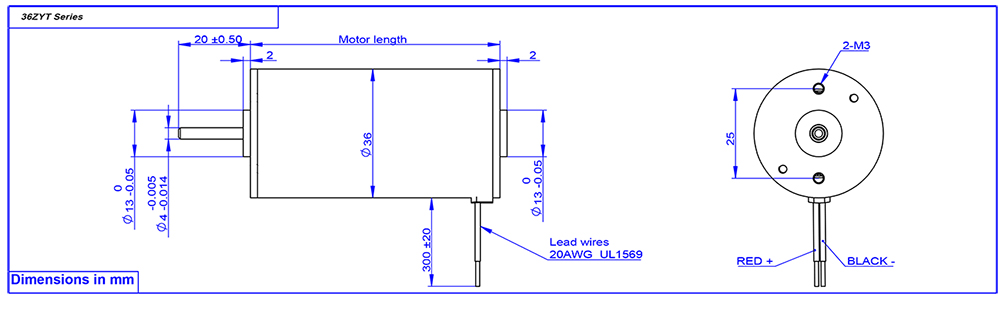

Drawing:

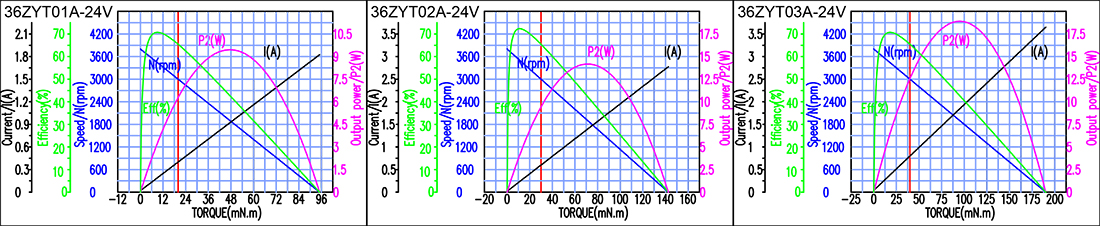

Speed-Torque Curve：
