The detailed information
32ZYN Motor General Specification:
Bearing: High Quality Ball Bearing
Magnet: NdFeB Magnet, 2- Poles
Protection Class: IP50 (Option IP54)
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
32ZYN Motor Main Technical Specification:
Model | Unit | 32ZYN01A | 32ZYN02A | 32ZYN03A |
Rated Voltage | VDC | 24v (option for 12v up to 48vdc) | ||
No Load Speed | Rpm | 3700 | 3700 | 3700 |
Rated Torque | mN.m | 30 | 40 | 50 |
Rated Speed | Rpm | 3000 | 3000 | 3000 |
Rated Current | A | 0.6 | 0.75 | 0.95 |
Output Power | W | 9.5 | 12.5 | 16 |
Weight | G | 200 | 240 | 280 |
Motor Length | Mm | 60 | 70 | 80 |

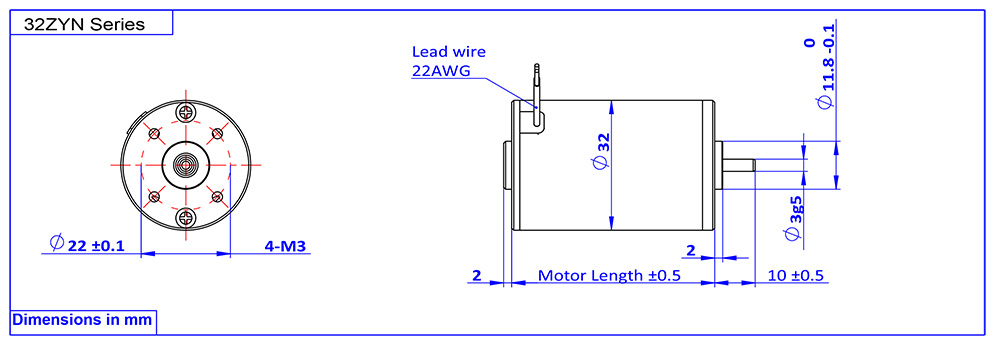

Drawing:

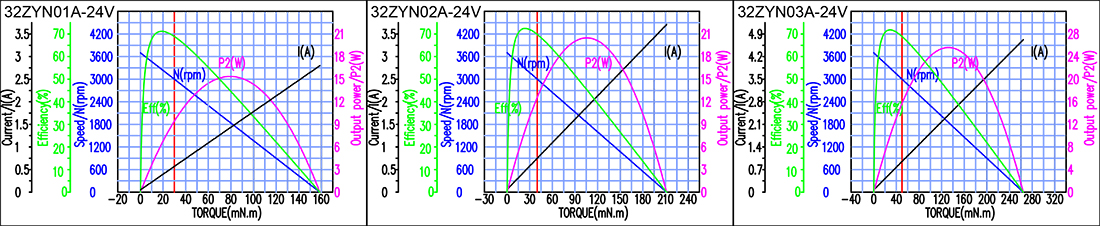

Speed-Torque Curve:
