The detailed information
70ZYT Motor General Specifications:
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP50 £¨Option for IP54£©
Insulation Class: Class F / Working Temperature: -40¡æ~+140¡æ
Option: Customized Voltage Performance Mounting and Shaft
70ZYT Motor Main Technical Specification:
Model | Unit | 70ZYT01A | 70ZYT02A | 70ZYT03A | 70ZYT04A |
Rated Voltage | VDC | 24v (option for 12v up to 220vdc) | |||
No Load Speed | Rpm | 3600 | 3600 | 3600 | 3600 |
Rated Torque | N.m | 0.1 | 0.25 | 0.35 | 0.5 |
Rated Speed | Rpm | 3000 | 3000 | 3000 | 3000 |
Rated Current | A | 1.8 | 4.6 | 6.4 | 9.2 |
Output Power | W | 31 | 78 | 109 | 157 |
Weight | Kg | 0.85 | 1.2 | 1.4 | 1.6 |
Motor Length | mm | 79 | 99 | 109 | 129 |
Drawing:

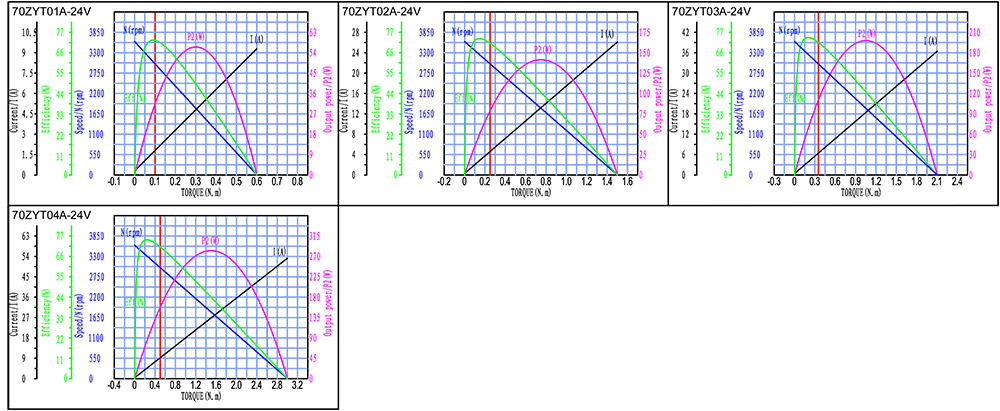

Speed-Torque Curve£º
