The detailed information
60ZYT Motor General Specifications:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP50 （Option for IP54）
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Option: Customized Voltage Performance Mounting and Shaft
60ZYT Motor Main Technical Specification:
Model | Unit | 60ZYT01A | 60ZYT02A | 60ZYT03A |
Rated Voltage | VDC | 24v (option for 12v up to 60vdc) | ||
No Load Speed | Rpm | 3500 | 3500 | 3500 |
Rated Torque | N.m | 0.1 | 0.18 | 0.26 |
Rated Speed | Rpm | 3000 | 3000 | 3000 |
Rated Current | A | 1.8 | 3.2 | 4.8 |
Output Power | W | 31.5 | 56.5 | 81.5 |
Weight | Kg | 0.85 | 1.00 | 1.15 |
Motor Length | mm | 85 | 100 | 115 |
Drawing:

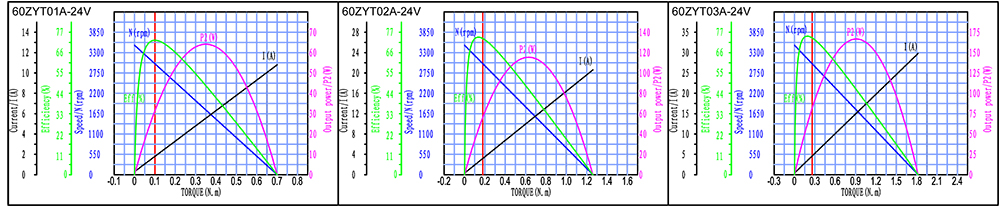

Speed-Torque Curve：
