90ZYT Motor General Specification:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 4- Poles
Protection Class: IP54
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
90ZYT Motor Main Technical Specifications:
Model | Unit | 90ZYT-S01A | 90ZYT-S01B | 90ZYT-S02A | 90ZYT-S02B | 90ZYT-S03A | 90ZYT-S03B |
Rated Voltage | VDC | 24v (option for 12v 36v 48v up to 220vdc) | |||||
No Load Speed | Rpm | 3600 | 2300 | 3600 | 2300 | 3600 | 2300 |
Rated Torque | N.m | 1.5 | 1.5 | 2.2 | 2.0 | 3.0 | 3.0 |
Rated Speed | rpm | 3000 | 1850 | 3000 | 1800 | 3000 | 1800 |
Rated Current | A | 26 | 16.5 | 37 | 21 | 50 | 32 |
Output Power | W | 471 | 290 | 691 | 377 | 942 | 565 |
Weight | Kg | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 |
Motor Length | Mm | 155 | 155 | 180 | 180 | 199 | 199 |

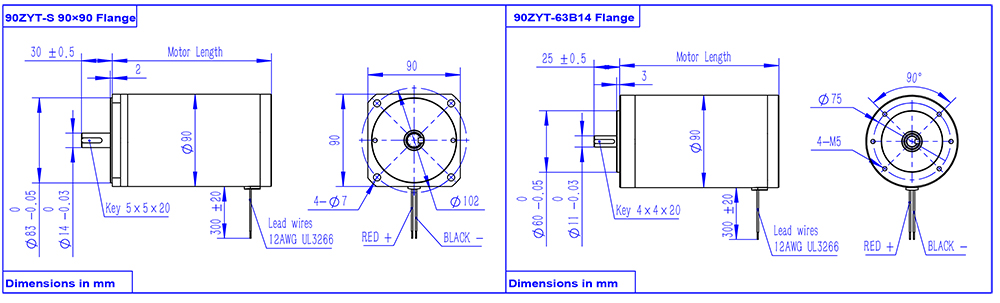

Drawing:

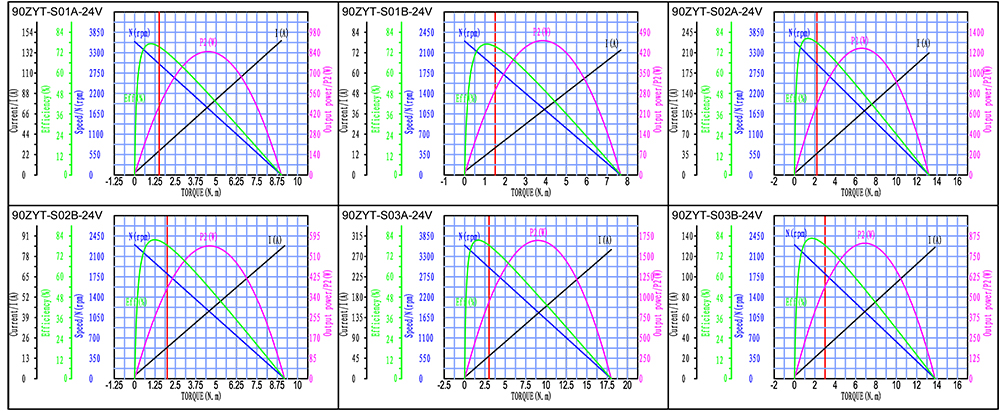

Speed-Torque Curve:
