Item | Specification |
Winding Type | Star |
Hall Effect Angle | 120¡ã £¨electrical angle£© |
Shaft Run Out | 0.025mm |
Radial Play | 0.025mm@450g |
End Play | 0.08mm@450g |
Max. Radial Force | 28N@20mm from the flange |
Max. Axial Force | 10N |
Insulation Class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation Resistance | 100M¦¸ Min.500VDC |
Customization:
Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations
Options for Thermal Protection, IP Grade, High Temperature Insulation
Technique Specification
Model | 42RBL-N01A | 42RBL-N02A | 42RBL-N03A | 42RBL-N04A | |
Number of phase | 3 | ||||
Number of pole | 8 | ||||
Voltage | Vdc | 24v(Option for 12v up to 120vdc) | |||
No load speed | rpm | 4200 | 4200 | 4200 | 4200 |
Rated torque | mNm | 90 | 140 | 250 | 300 |
Rated Speed | rpm | 3000 | 3000 | 3000 | 3000 |
Rated Current | A | 1.7 | 2.8 | 5.2 | 6.5 |
Rated Power | W | 28 | 44 | 78 | 94 |
Weight | kg | 0.32 | 0.4 | 0.7 | 0.8 |
Length | mm | 50 | 60 | 85 | 93 |

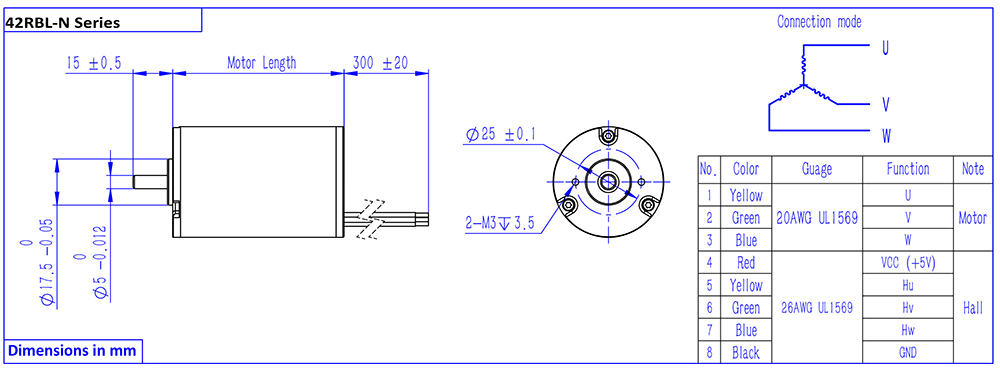

Drawing£º
