General specification
Item | Specification |
Winding Type | Star / Delta |
Hall Effect Angle | 120¡ã £¨electrical angle£© |
Shaft Run Out | 0.025mm |
Radial Play | 0.025mm@460g |
End Play | 0.025mm@4000g |
Max. Radial Force | 115N@10mm from the flange |
Max. Axial Force | 45N |
Insulation Class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation Resistance | 100M¦¸ Min.500VDC |
Customization:
Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations
Options for Thermal Protection, IP Grade, High Temperature Insulation
Technique Specification
Model | 57HBL01A | 57HBL02A | 57HBL03A | 57HBL04A | |
Number of phase | 3 | ||||
Number of pole | 4 (Option for 8) | ||||
Voltage | Vdc | 224v(Option for 12v up to 230vdc) | |||
No load speed | rpm | 5200 | 5200 | 5300 | 5300 |
Rated torque | Nm | 0.14 | 0.28 | 0.43 | 0.49 |
Rated Speed | rpm | 4000 | 4000 | 4000 | 4000 |
Rated Current | A | 3.3 | 6.7 | 10.5 | 11.5 |
Rated Power | W | 59 | 117 | 180 | 205 |
Weight | kg | 0.5 | 0.8 | 1.1 | 1.5 |
Length | mm | 55 | 75 | 95 | 115 |

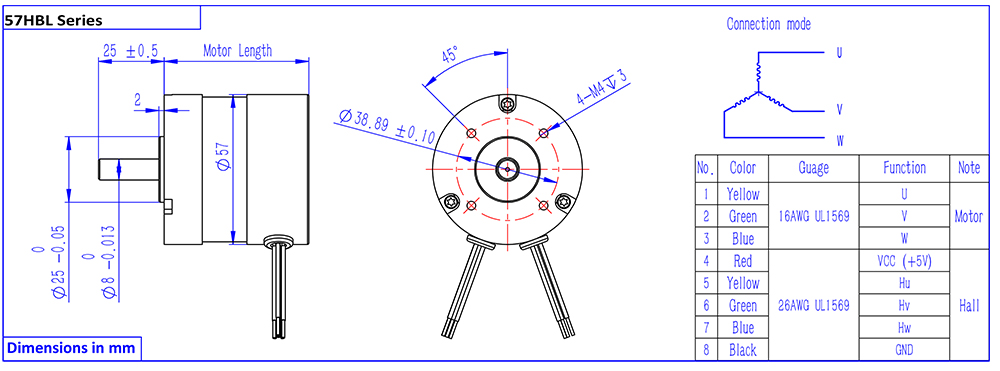

Drawing£º
